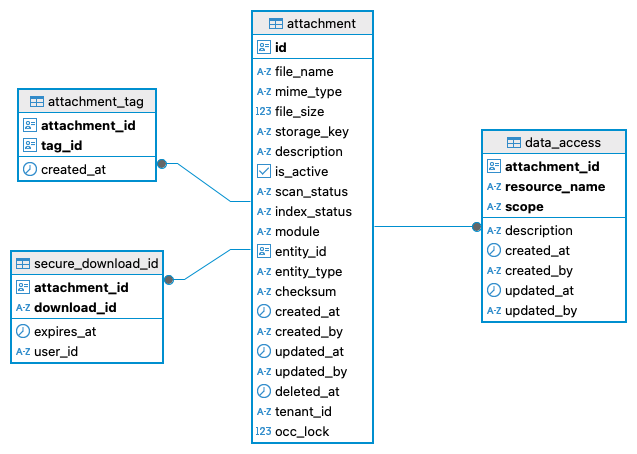

Class Diagram

attachment

• The attachment table is used to store the attachments metadata and the file information.

Name	Type	Description
id	uuid.UUID	The id of the attachment.
file_name	string	The name of the file, include the extension.
file_size	int64	The size of the file in bytes.
mime_type	string	The MIME type of the file.
storage_key	string	The key of the file in the storage.
description	string	The description of the attachment.
is_active	bool	Whether the attachment is active.
scan_status	string	The status of the scan, for example: pending, success, failed, and NA when the scan is not enabled.
index_status	string	The status of the index, for example: pending, success, failed, and NA when the index is not enabled.
module	string	The module of the attachment, for example: resource, task, document
entity_id	uuid.UUID	The reference to the entity this row belongs to
entity_type	string	The type of the entity this row belongs to
checksum	string	The checksum when the file is uploaded.
tenant_id	string	The reference to the tenant this row belongs to
occ_lock	int	This integer must match on all update queries to ensure the user is not trying to update a row with outdated data.
created_at	time.Time	The UTC timestamp when this record was first created.
created_by	string	The reference to the user who created this record
updated_at	time.Time	The UTC timestamp when this record was last updated, use database triggers.
updated_by	string	The reference to the user who last modified this record
deleted_at	time.Time	The UTC timestamp when this record was deleted.

data_access

• Data Access can be associated with Attachment to restrict access by the users to specific attachment.
• When Data Access entry is created for an Attachment, Attachment Management Module will restrict user access at the functional level and data level, i.e., the user will need to have both function access right and data access right.

Name	Type	Description
attachment_id	uuid.UUID	The reference to the attachment this row belongs to
resource_name	string	The name of the resource
scope	string	The scope of the data access, for example: edit, view
created_at	time.Time	The UTC timestamp when this record was first created.
created_by	string	The reference to the user who created this record
updated_at	time.Time	The UTC timestamp when this record was last updated, use database triggers.
updated_by	string	The reference to the user who last modified this record

secure_download_id

• The secure download id is used to generate a secure download link for the attachment.
• Each attachment can have multiple secure download ids, and each secure download id is only valid for user who generated the secure download id.

Name	Type	Description
attachment_id	uuid.UUID	The reference to the attachment this row belongs to
download_id	uuid.UUID	The download id
user_id	uuid.UUID	The reference to the user this row belongs to
expire_at	time.Time	The UTC timestamp when this record will expire

attachment_tag

• The attachment tag is used to tag the attachment with a tag.

Name	Type	Description
attachment_id	uuid.UUID	The reference to the attachment this row belongs to
tag_id	uuid.UUID	The reference to the tag this row belongs to
created_at	time.Time	The UTC timestamp when this record was first created.
