Deployment

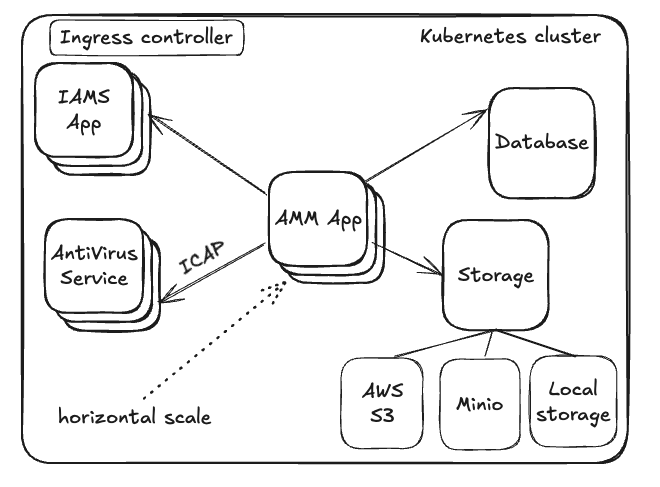

Deployment Diagram

IaC sample deployment

To configure the deployment properly, you need to set the following values. For detailed configuration options, please refer to the configuration page.

Deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: amm
  namespace: amm
  labels:
    app: amm
spec:
  replicas: 1
  selector:
    matchLabels:
      app: amm
  template:
    metadata:
      labels:
        app: amm
    spec:
      imagePullSecrets:
        - name: gh-regcred

      containers:
        - name: amm
          imagePullPolicy: IfNotPresent
          image: ghcr.io/mssfoobar/amm/amm-app:latest-dev

          env:
            - name: LOG_LEVEL
              value: info
            - name: APP_PORT
              value: "8000"
            - name: DATABASE_USER
              value:
            - name: DATABASE_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: amm-secret
                  key: amm-db-password
            - name: DATABASE_HOST
              value: <your-database-host>
            - name: DATABASE_PORT
              value: "5432"
            - name: DATABASE_NAME
              value: <database-name>
            - name: DATABASE_SCHEMA
              value: <database-schema>
            - name: DATABASE_MAX_CONNS
              value: "10"
            - name: DATABASE_MAX_IDLE_CONNS
              value: "5"
            - name: DATABASE_MAX_CONN_LIFETIME
              value: "30m"
            - name: DATABASE_SSL_MODE
              value: "disable"

            - name: IAMS_AAS_URL
              value: <iams-aas-url>
            - name: IAMS_KEYCLOAK_URL
              value: <iams-keycloak-url>
            - name: IAMS_DATA_ACCESS_RESOURCE_TYPE
              value: <iams-data-access-resource-type>

            - name: STORAGE_TYPE
              value: <storage-type>
            - name: STORAGE_PATH
              value: <storage-path>
            - name: STORAGE_URL
              value: <storage-url>
            - name: STORAGE_BUCKET_NAME
              value: <storage-bucket-name>
            - name: STORAGE_ACCESS_KEY
              valueFrom:
                secretKeyRef:
                  name: amm-secret
                  key: storage-access-key
            - name: STORAGE_SECRET_KEY
              valueFrom:
                secretKeyRef:
                  name: amm-secret
                  key: storage-secret-key
            - name: STORAGE_REGION
              value: <storage-region>
            - name: DOWNLOAD_ID_EXPIRE_DURATION
              value: 5m

            - name: SEARCH_SERVICE_ENABLED
              value: "false"
            - name: VIRUS_SCANNER_ENABLED
              value: "false"
            - name: CHECKSUM_ENABLED
              value: "false"

            - name: MAX_UPLOAD_SIZE
              value: 5MiB
            - name: ALLOWED_FILE_TYPES
              value: <allowed-file-types>

          livenessProbe:
            httpGet:
              path: /health/livez
              port: 8000
            initialDelaySeconds: 20
            periodSeconds: 10
          readinessProbe:
            httpGet:
              path: /health/readyz
              port: 8000
            initialDelaySeconds: 20
            periodSeconds: 10
          ports:
            - name: http
              containerPort: 8000

Service

apiVersion: v1
kind: Service
metadata:
  name: amm
  namespace: amm
  labels:
    app: amm
spec:
  ports:
    - name: http
      port: 8000
      targetPort: 8000
  selector:
    app: amm
  type: ClusterIP
  clusterIP: None

Ingress

apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: amm-ingressroute
  namespace: amm
spec:
  entryPoints:
    - web
    - websecure
  routes:
    - match: Host(`<your-domain>`)
      kind: Rule
      middlewares:
        - name: cors-allow-all
          namespace: amm
      services:
        - name: amm
          port: 8000
---
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: cors-allow-all
  namespace: amm
spec:
  headers:
    accessControlAllowCredentials: true
    accessControlAllowHeaders:
      - "*"
    accessControlAllowMethods:
      - "*"
    accessControlAllowOriginList:
      - "*"
    accessControlMaxAge: 100
    addVaryHeader: true

Database (Postgres)

Deploying the Postgres database is beyond the scope of this guide. An existing Postgres database can be used, or a new one can be deployed. If using an existing database shared with other modules, ensure a new schema is created for the AMM module to avoid name collisions.

Schema Initializing

SQL script to initialize the schema can be found inside the directory of the released source code.

└── app
    ├── schema
    │   └── schema.sql

To initialize the schema, run the script using preferred SQL client or use the psql command below, assuming the command is executed within a postgres container.

psql -U USERNAME -d PASSWORD -f /app/schema/schema.sql

• Replace USERNAME with your postgres username
• Replace PASSWORD with your postgres password

Others (Dependencies):

The AMM requires the following services to be deployed to function properly:

• IAMS module (IAM Service)
• Virus scanner module (Virus Scanner Service is optional, if enabled, it will be used to scan the uploaded file)
• Storage module (Storage Service is optional, if enabled, it will be used to store the uploaded file)
