Switch Recovery

When none of the conditions defined in the switch state are fulfilled, the workflow will throw an exception to allow manual recovery by the user.

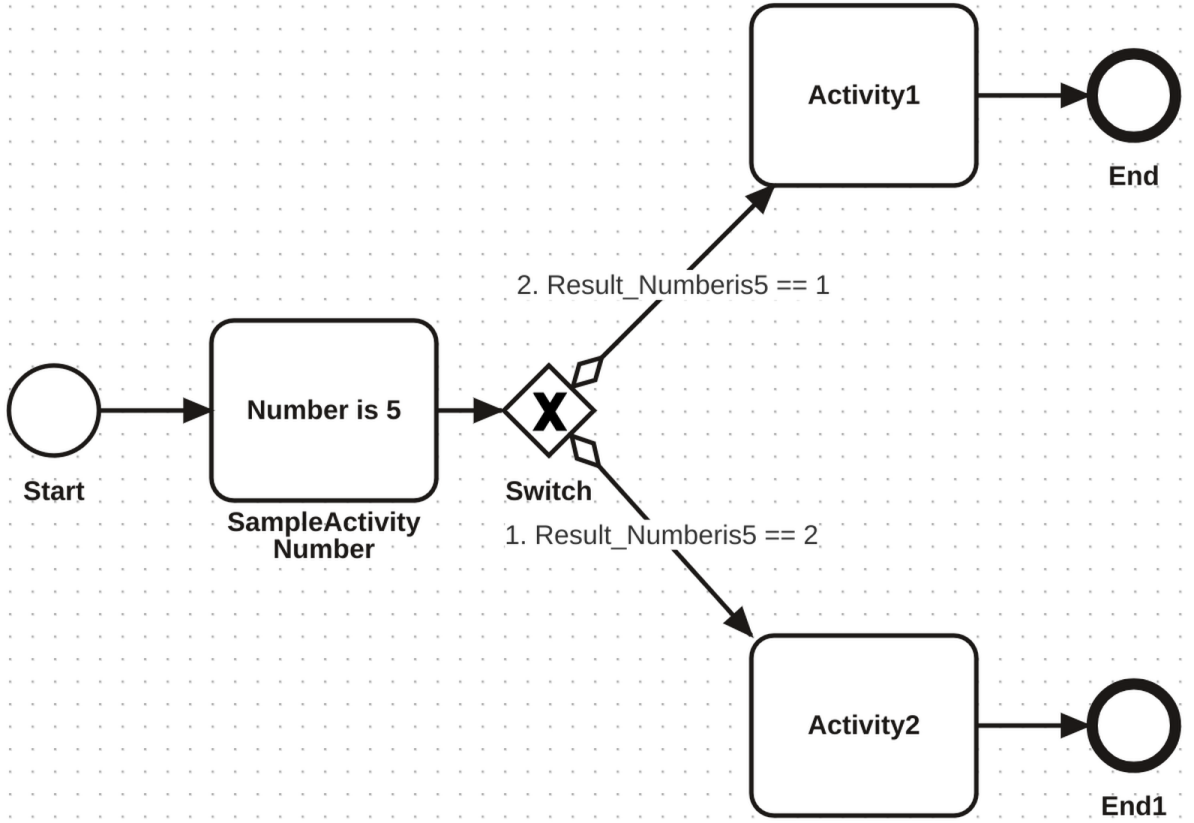

The following example workflow will create switch recovery events because it is trying to evaluate the conditions whether 5 is equal to 1 or 2 and thus throws an exception.

RecoverTaskScheduled

When this event is created, it generates attributes.input field with list of nearest activities that workflow can recovery from

{
	"event_type": "RecoverTaskScheduled",
	"task_name": "Switch",
	"task_type": "Recover",
	"attributes": {
		"input": [["activity1", "activity2"], "Switch"]
	}
}

First object inside the input field is the list of activities. (as per above example: ["activity1", "activity2"])

RecoverTaskStarted

When this event is created, it generates attributes field with

{
	"event_type": "RecoverTaskStarted",
	"task_name": "Switch",
	"task_type": "Recover",
	"attributes": {
		"workflow_id": "0ee7f976-d85d-4856-8e5c-b5b635baca7a_29",
		"workflow_run_id": "f6704d77-ad60-47ee-a328-48f7748d41c7"
	}
}

caution

Do not confuse workflow_id created by form activity with workflow_id from Start Workflow. Former is the child workflow_id and latter is the parent workflow_id. When you interact with form activity, you should use the child workflow_id.

Workflow waits for the user input by creating listener with acivity_name value. To recover the workflow call the Signal Workflow API with workflow_id, activity_name and request body. Request body data field must have the name of the activity to recover.

Based on the above example workflow, if we want to recover the workflow to activity1, frontend code will look like this

const axios = require("axios");
let data = JSON.stringify({
	data: "activity1",
});

let config = {
	method: "post",
	maxBodyLength: Infinity,
	url: "{WFM_URL}/v1/signal/workflow/:workflowid/signalname/:signalname",
	headers: {
		"Content-Type": "application/json",
		Accept: "application/json",
	},
	data: data,
};

axios(config)
	.then((response) => {
		logger.debug(JSON.stringify(response.data));
	})
	.catch((error) => {
		logger.debug(error);
	});

FormTaskCompleted

When the workflow is finally recovered, this event will be created with recovered activity name inside the attributes.result field.

{
	"event_type": "RecoverTaskCompleted",
	"task_name": "example",
	"task_type": "Recover",
	"attributes": {
		"result": ["Activity1"]
	}
}
