Version: 2.1.0

Deployment

The TAG service comprises of the backend server and database. The following diagram shows the TAG and its dependencies.

Deployment Artifacts​

GIS:​

  • Service Container:

    ghcr.io/mssfoobar/tag/tag-app:v1.0.0

  • Database:

    The TAG requires its own schema in a Postgres database, we recommend using the shortname of the module for the name of the schema (tag).

You can find the available configuration parameters at the configuration section and real examples at the GIS compose section of the dev-containers repository.

Others (Dependencies):​

The TAG requires the IAMS service to function properly as it uses the service for authentication.

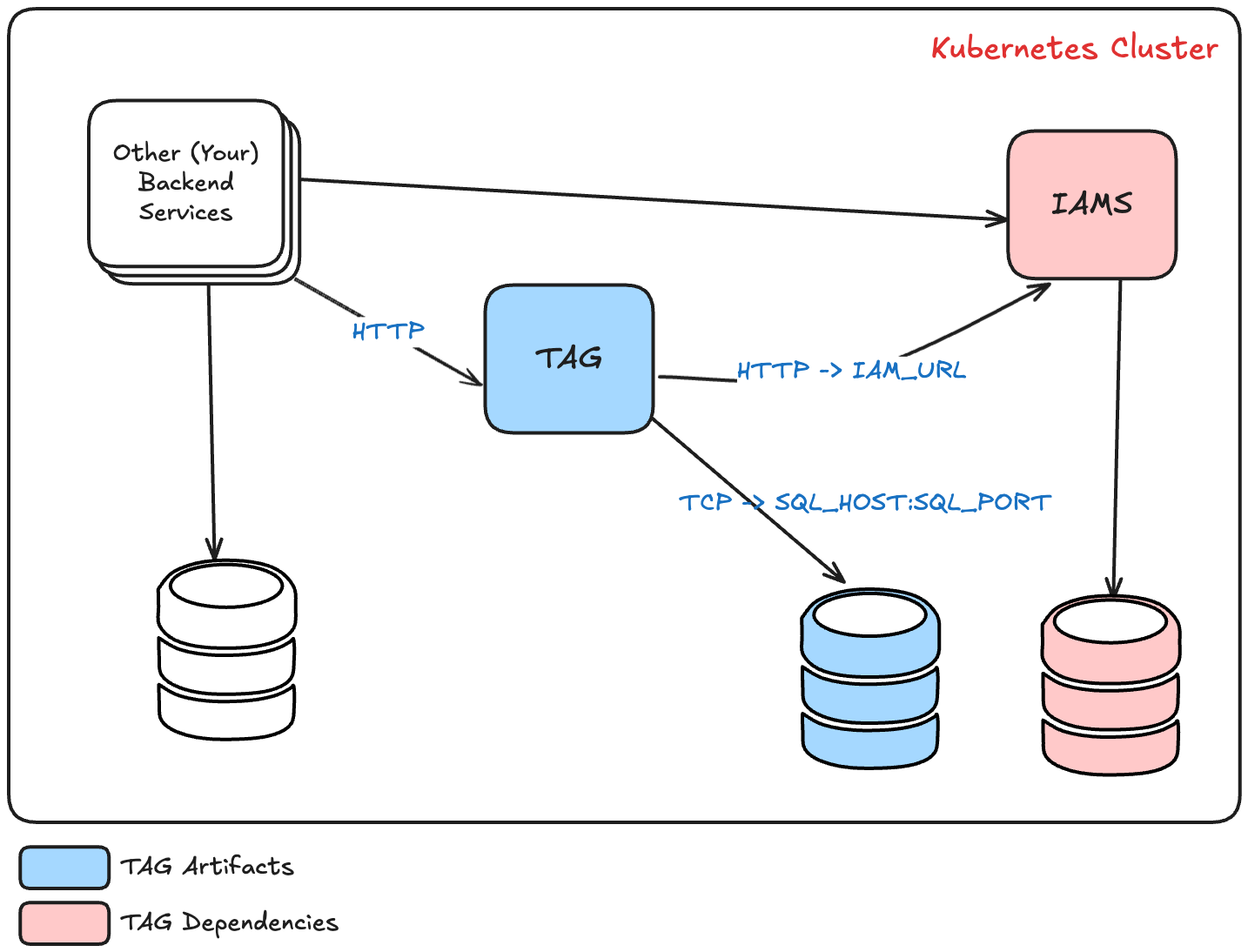

Deployment Diagram​

TAG Deployment Diagram
