Deployment

The GIS comprises of the modlet, backend server, and database. The following diagram shows the GIS and its dependencies. Note that in its current incarnation, the GIS is not involved in supplying map tiles. Its purview is strictly for operational entities, and uses the RTUS to update these entities to the frontend live.

Deployment Artifacts

GIS:

• Service Container:

  ghcr.io/mssfoobar/gis/gis-app:v2.0.0

• Modlet:

  @mssfoobar/gis-web@v1.1.0 - this is deployed as part of your application's web server

• Database:

  The GIS requires its own schema in a Postgres database, we recommend using the shortname of the module for the name of the schema (gis).

You can find the available configuration parameters at the configuration section and real examples at the GIS compose section of the dev-containers repository.

Others (Dependencies):

The GIS requires the following services to be deployed to function properly. The client must also be able to connect to the RTUS for the live events to be sent.

• IAMS
• RTUS

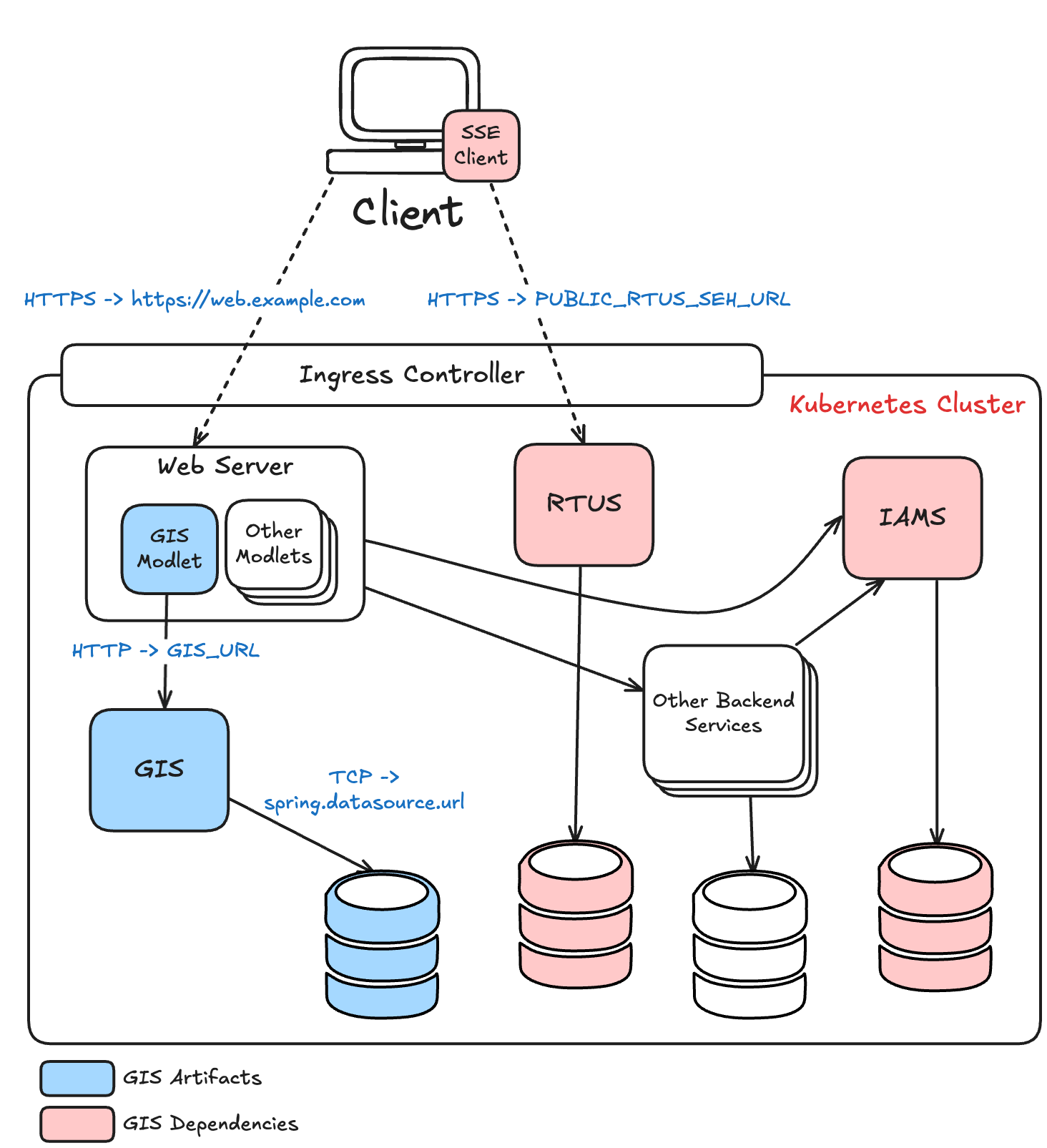

Deployment Diagram

GIS Deployment Diagram
